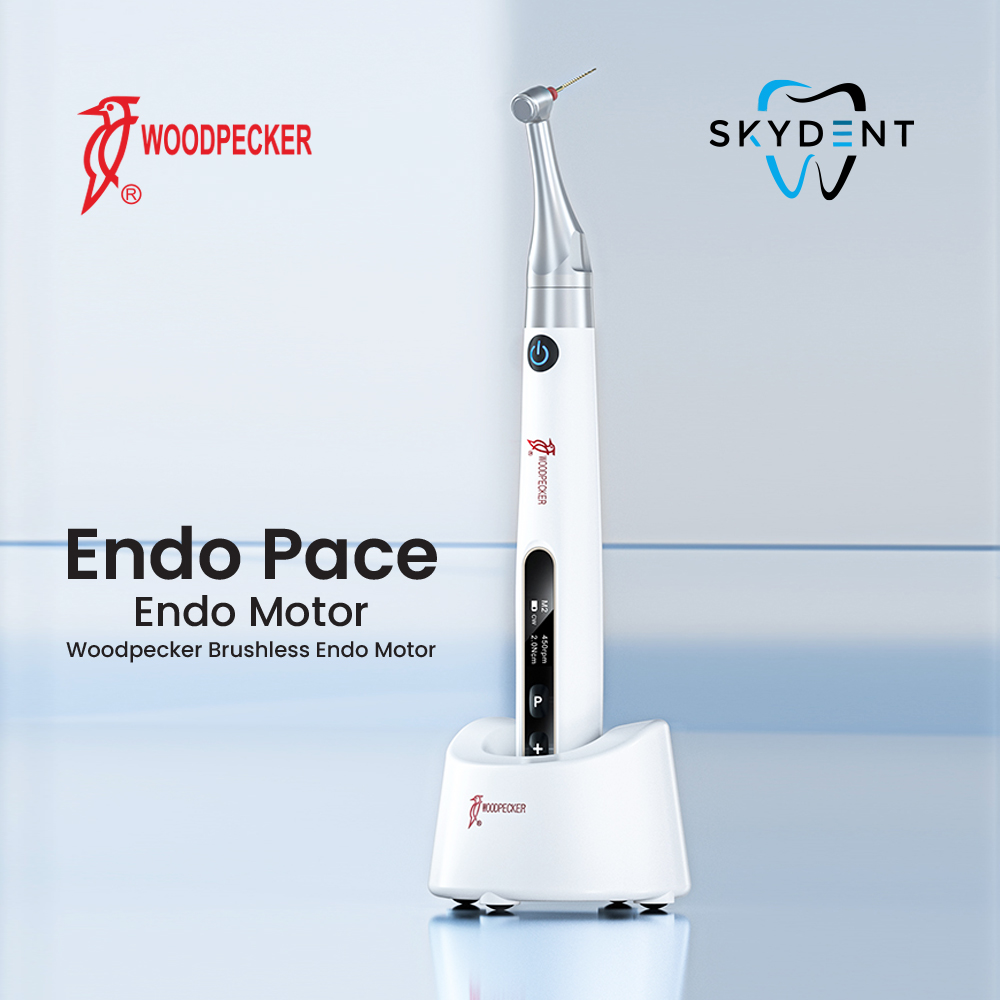

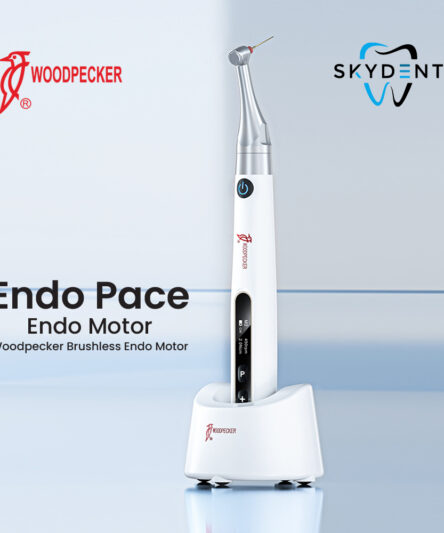

Endo Pace Endo Motor

Key Features & Specifications

• High-Performance Brushless Motor: Offers low wear, reduced noise levels, minimal heat generation, and an extended service life.

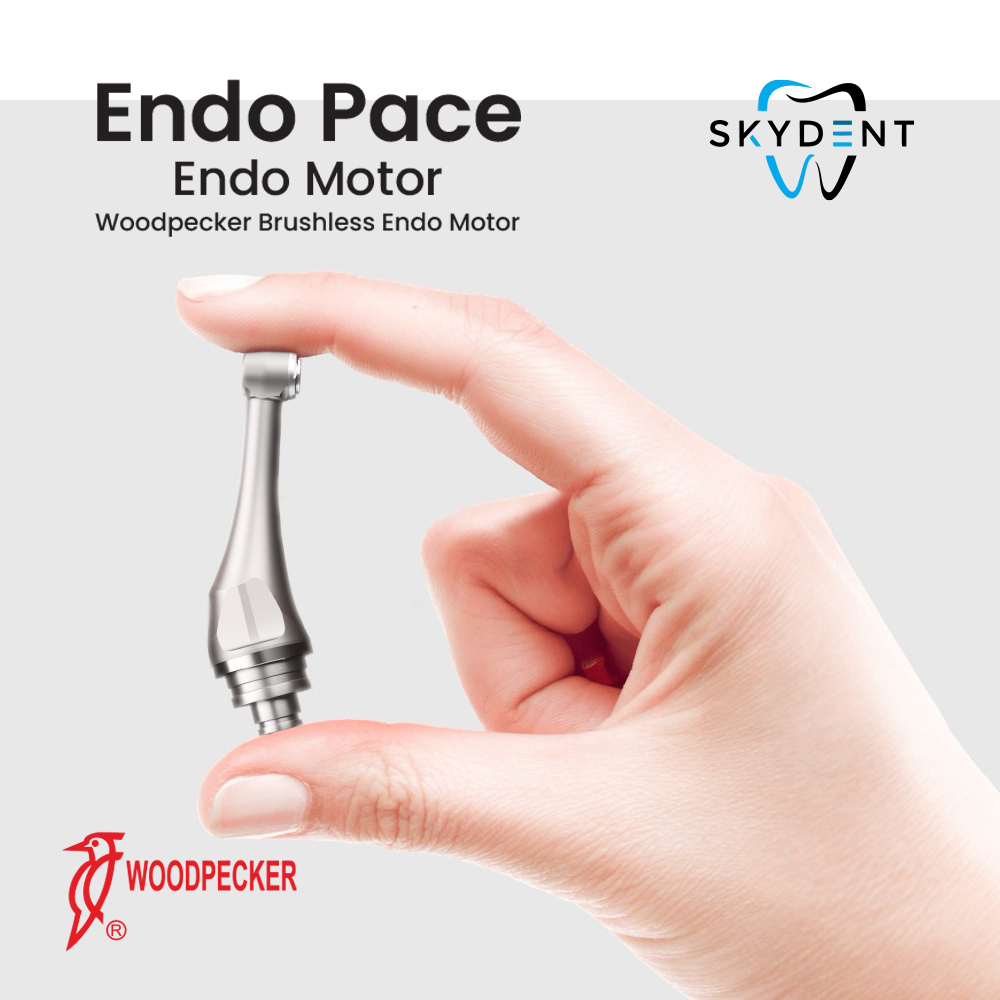

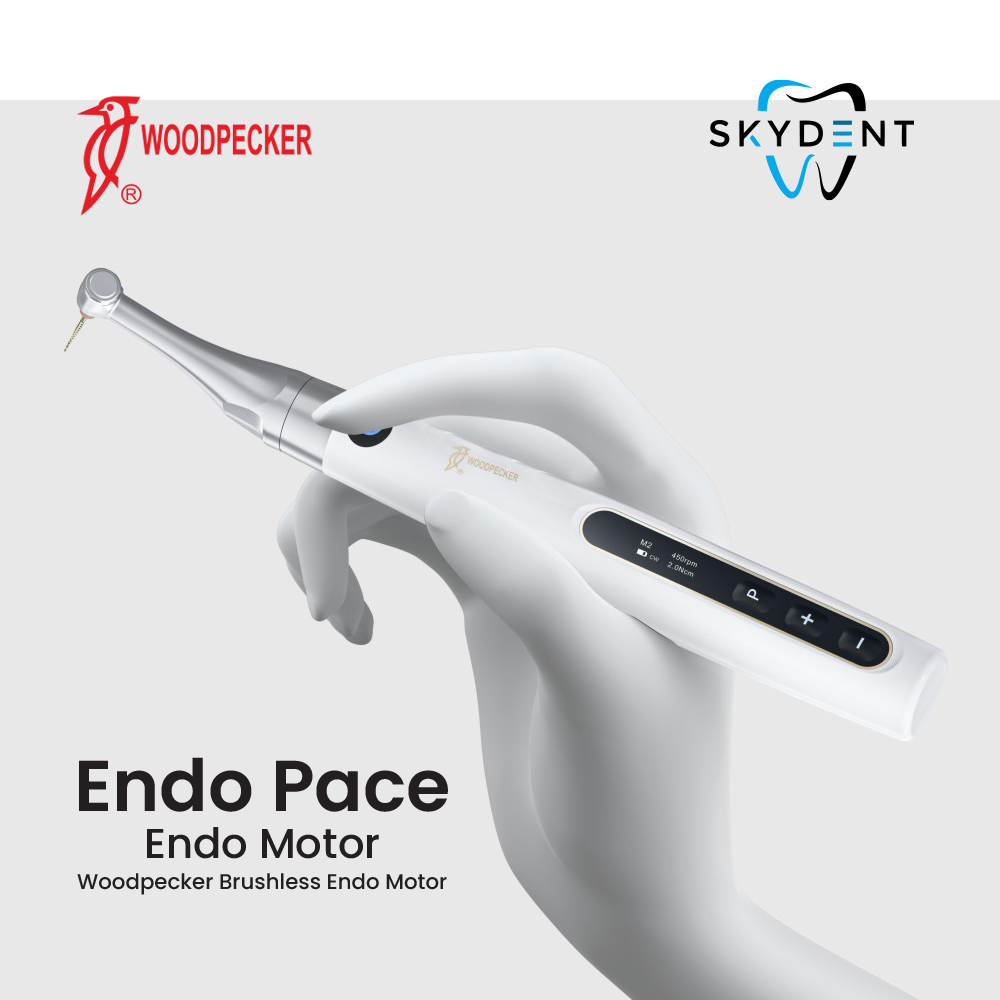

• Lightweight & Cordless Design: Weighs approximately 106.8g (including the handpiece and contra-angle) for optimal balance and comfortable handling without cord restrictions.

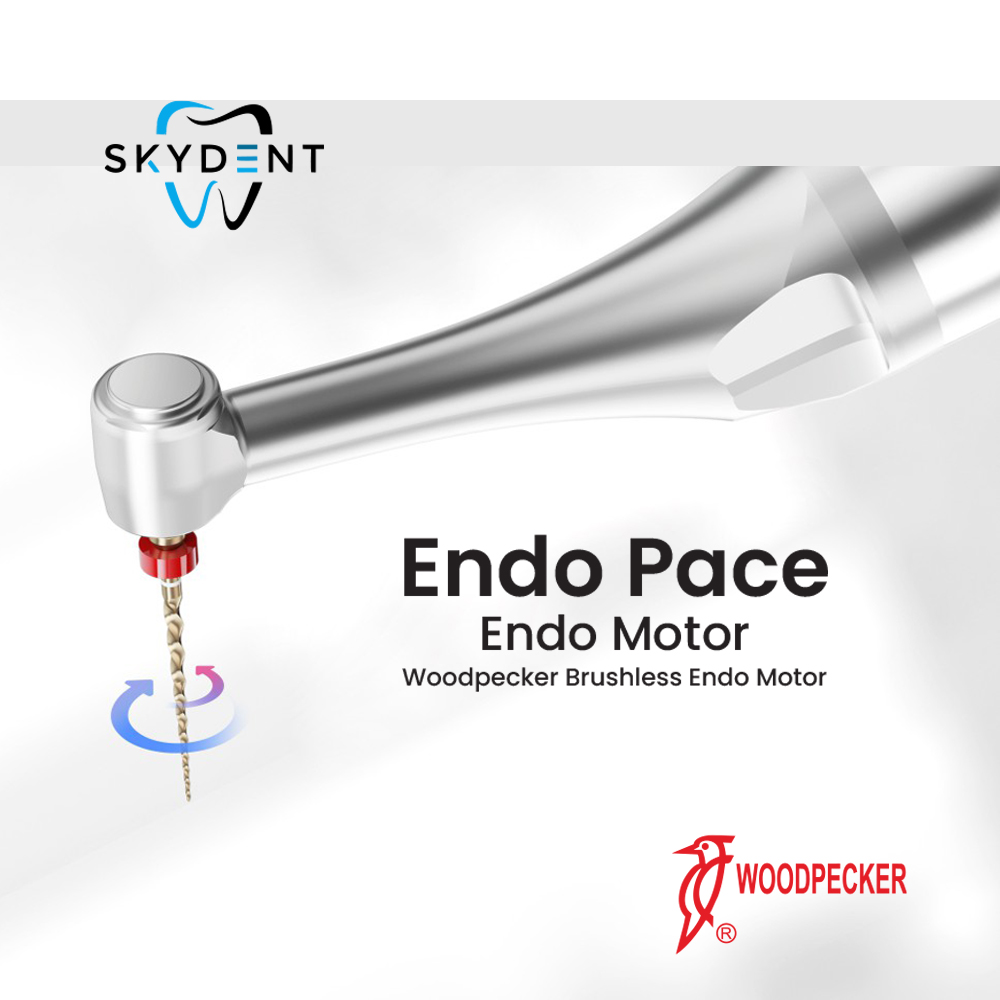

• 6:1 Mini Contra-Angle: Features a compact head (8 mm diameter, 9.7 mm height) providing a wider operation field and clear visibility. It is also 360° rotatable for flexible access to different tooth positions.

• Adjustable Working Modes: Includes 4 primary modes:

  • Forward Rotation Mode

  • Reverse Rotation Mode

  • Reciprocating Mode (with adjustable angles from 20° to 340° in 10° intervals)

  • ATR (Adaptive Torque Reverse) Mode

• Performance Range:

  • Speed: 100 rpm – 1,500 rpm

  • Torque: 0.4 N·cm – 4.2 N·cm

• Apex Locator Compatibility: Can be connected to a matching apex locator to monitor the file tip’s real-time position inside the root canal.
